Technical and outdoor luminaires >>> Fluorescent
  • TL09

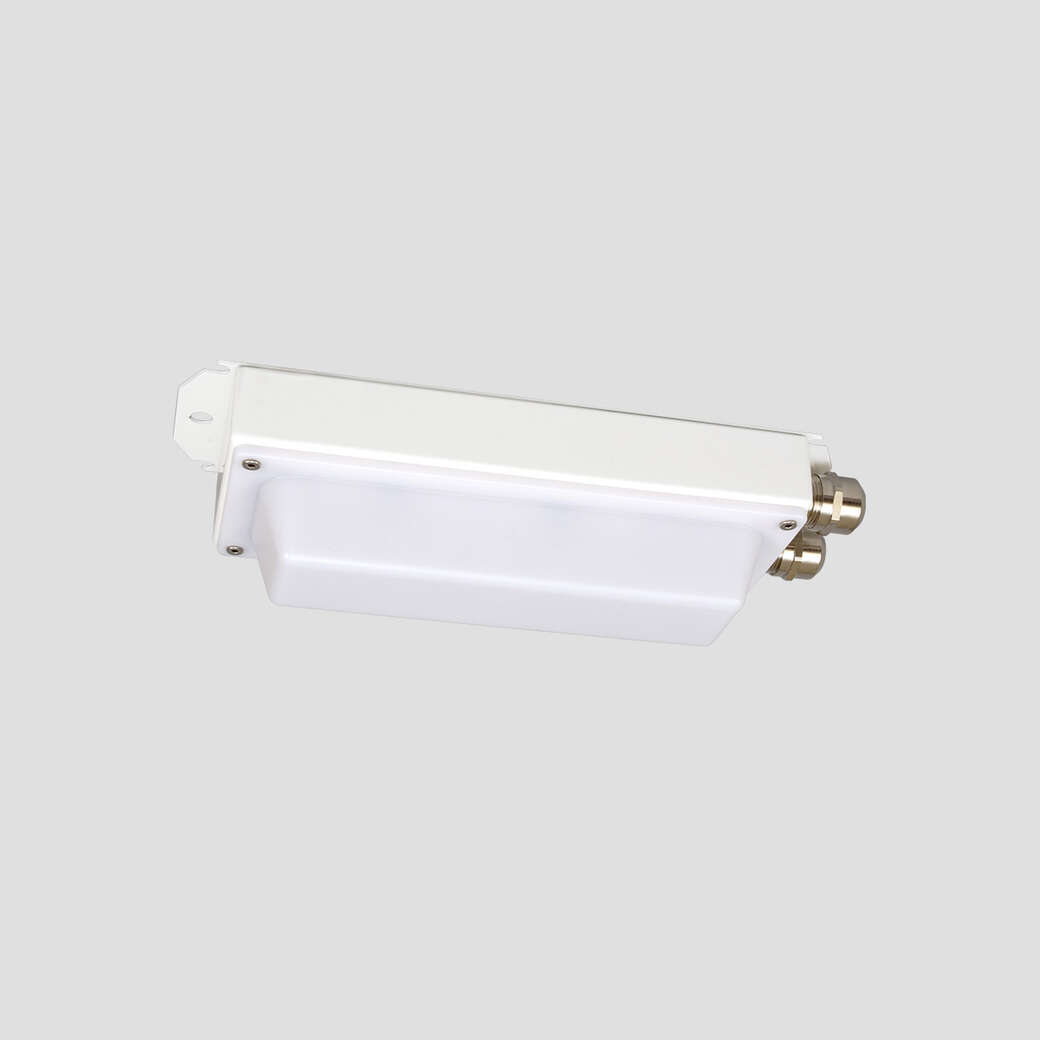

TL09

Multipurpose watertight luminaire for decks, stores, engine rooms, IP67

Part no.5105009300-002
DesignAccording to rules of maritime classification societies and relevant standards
HousingGalvanized steel, power coated white (RAL9016)
CoverClear polycarbonate, satined, impact-proof
Mounting2 mounting holes, Ø 9 mm
Cable entry2 cable glands M20, PA 6
WiringFlexible wiring, heat resistant up to 105°C
Protection classIP67
Weight1.6 kg
Light sourceCompact fluorescent lamp (not included)
Lamp base2G7
Wattage1x 9 W
Voltage220-240 V AC
Frequency50 Hz or 60 Hz
TL09
Spare Parts                                Part no.
Cover satined7925000900
Cover opal7925000800
Lamp holder 2G77111022100
Electr. Ballast    7102022400

Extras

  • 120 V AC execution
  • Stainless steel housing
  • LED execution
  • Different cable glands on request
  • Opal polycarbonate diffuser
  • Stainless steel housing for outdoor marine environment
