Ceiling luminaires >>> LED
DA Flex L
Ceiling LED luminaire, surface mounting for passage ways, cabins, lounges, accommodation areas
| Design | According to rules of maritime classification societies, additional VDE and IEC |
| Housing | Galvanized steel, powder coated white (RAL9016) |
| Diffuser | Opal polycarbonate |

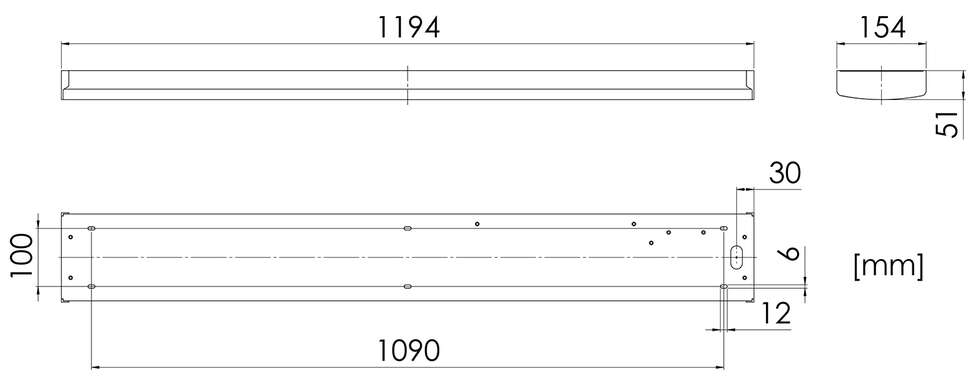

| Mounting | Mounting holes 6x Ø 6 mm |
| Cable entry | 30 x 16 mm or 2x grommets |
| Protection class | IP20 or IP44 |
| Weight | 3.6 kg |
| Wattage | Max. 32 W |
| CCT (color) | 3,000 K |
| Luminous flux | 3,300 lm |
| CRI | ≥ 80 |
| Voltage | 220-240 V AC |
| Frequency | 50-60 Hz |
IP20
IP44
| Part No. | ||
|---|---|---|
| DA Flex L | IP20 | 5112008900-005 |
| DA Flex L | IP44 | 5112010700-001 |
Extras
- Motion sensor
- 120 V AC execution
- 24 V DC execution
- Dimmable
- Different color temperatures
