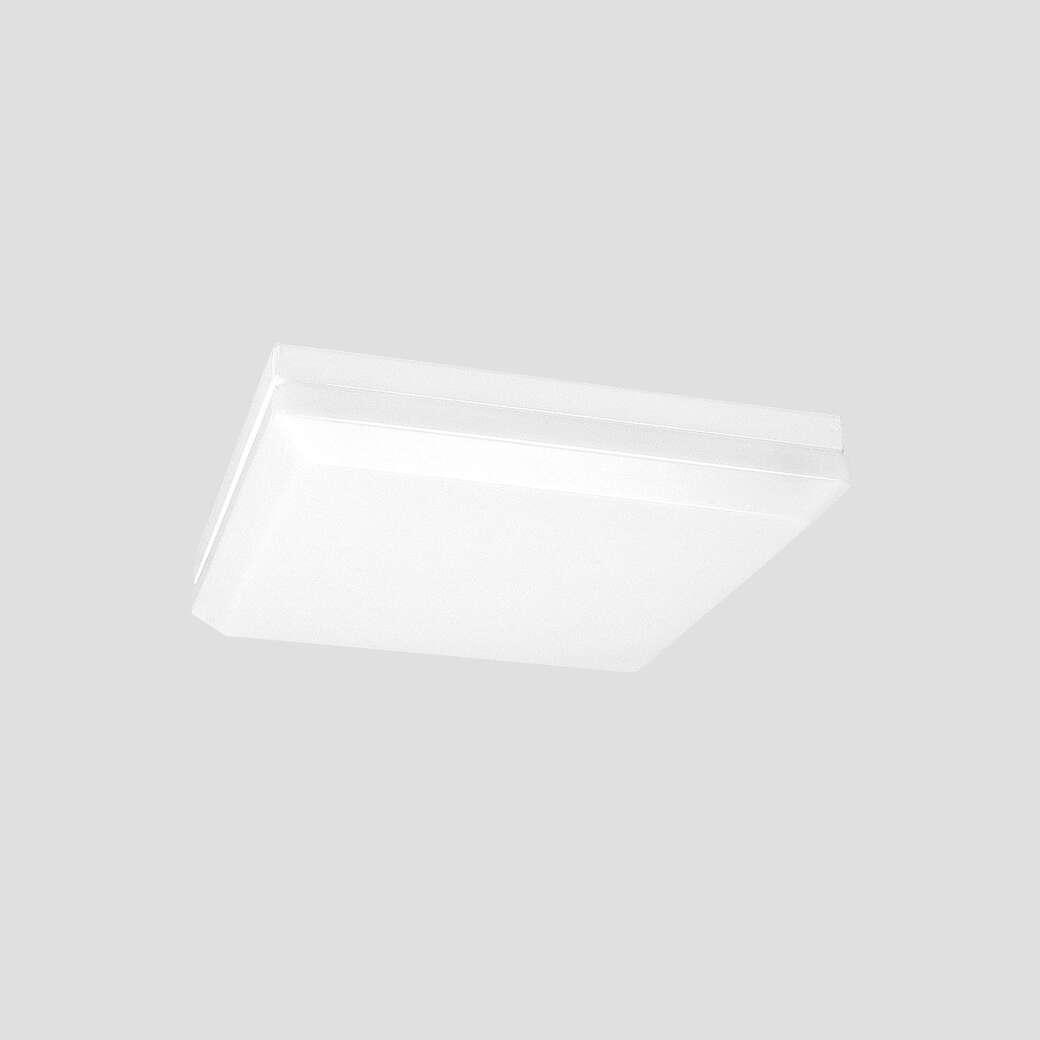

DA16FXS

Surface mounted ceiling luminaire for passage ways, cabins, accommodation and public areas

Design	According to rules of maritime classification societies and relevant standards
Housing	Galvanized steel, powder coated white (RAL9016)
Diffuser	Opal polycarbonate, impact-proof

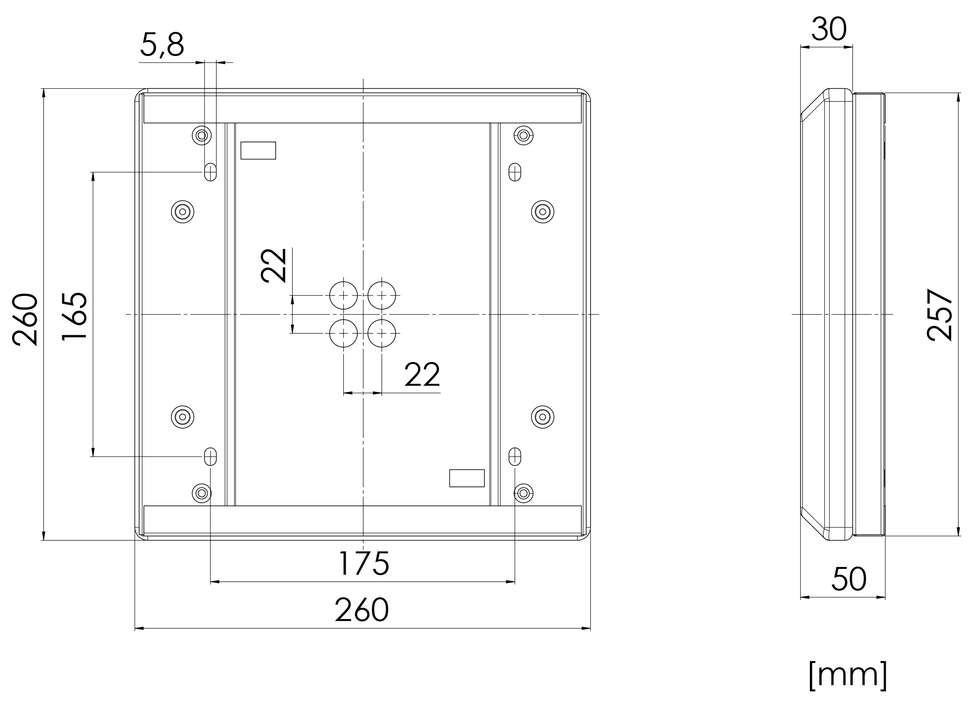

Mounting	4 mounting holes Ø 5.8 mm
Cable entry	4 inlets for cables max. Ø 11 mm
Protection class	IP43
Weight	1.4 kg
Light source	Linear LP LED modules
Wattage	Max. 8 W
CCT (color)	3,000 K or 4,000 K
Luminous flux	800 lm
CRI	≥ 80
Voltage	220-240 V AC
Frequency	50-60 Hz

Part No.
DA16FXS (3,000 K)	5112007000-001

SPARE PARTS	PART NO.
Cover	7112004700

Datasheet – DA16FXS (PDF)
