Design | According to rules of maritime classification societies, additional VDE and IEC |
Housing | Galvanized steel, powder coated white (RAL9016) |
End caps | Polycarbonate, white |
Diffuser | Polycarbonate, opal |

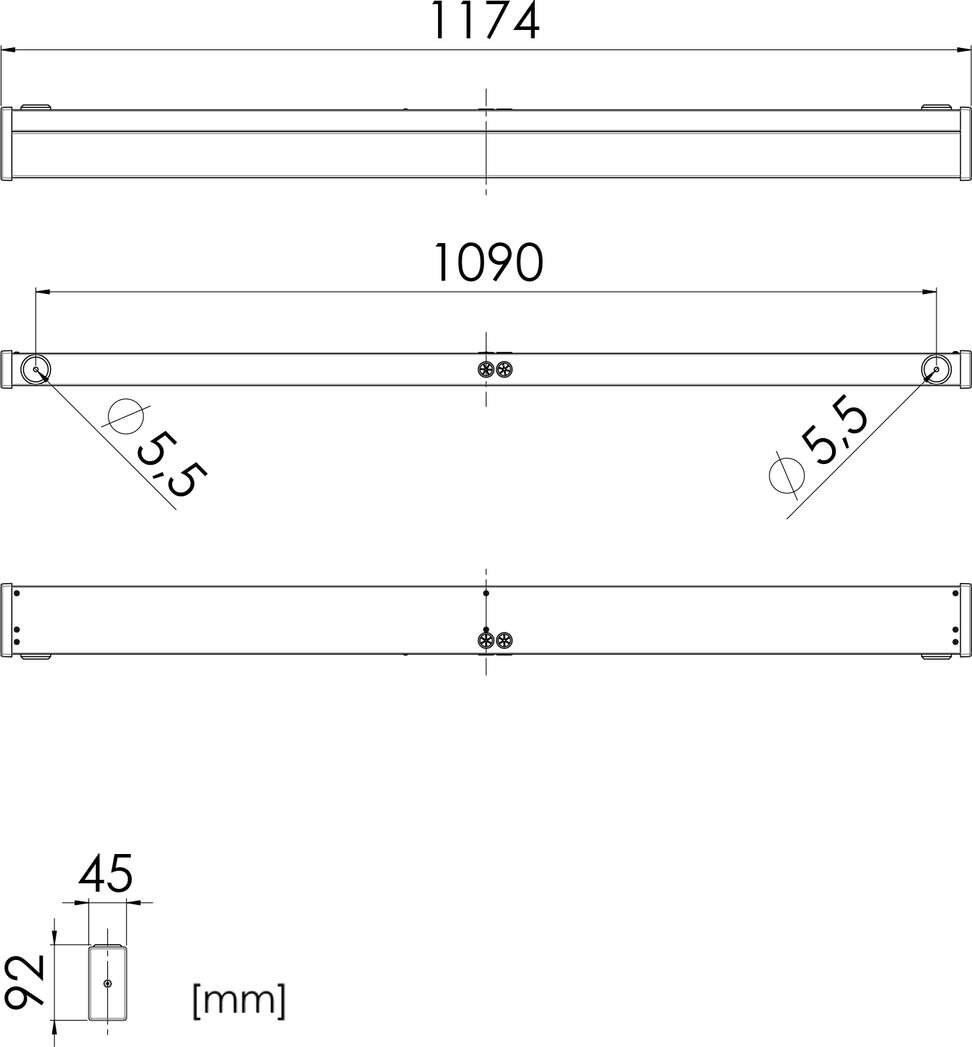

Mounting | 2 mounting holes, Ø 5.5 mm |
Cable entry | 4 inlets for cables max. Ø 11 mm |
Protection class | IP20 |
Weight | 2.5 kg |
Light source | LED module |
Wattage | Max. 22 W |
CCT (color) | 3,000 K |
Luminous flux | 3,000 lm |
CRI | ≥ 80 |
Voltage | 220-240 V AC |
Frequency | 50-60 Hz |
Part No. | |
---|---|
EL Flex L | 5113003500-002 |
SPARE PARTS | PART NO. |
---|---|
Cover | 7112037800 |
End cap | 7503000800 |
