  • EX40S

EX40S

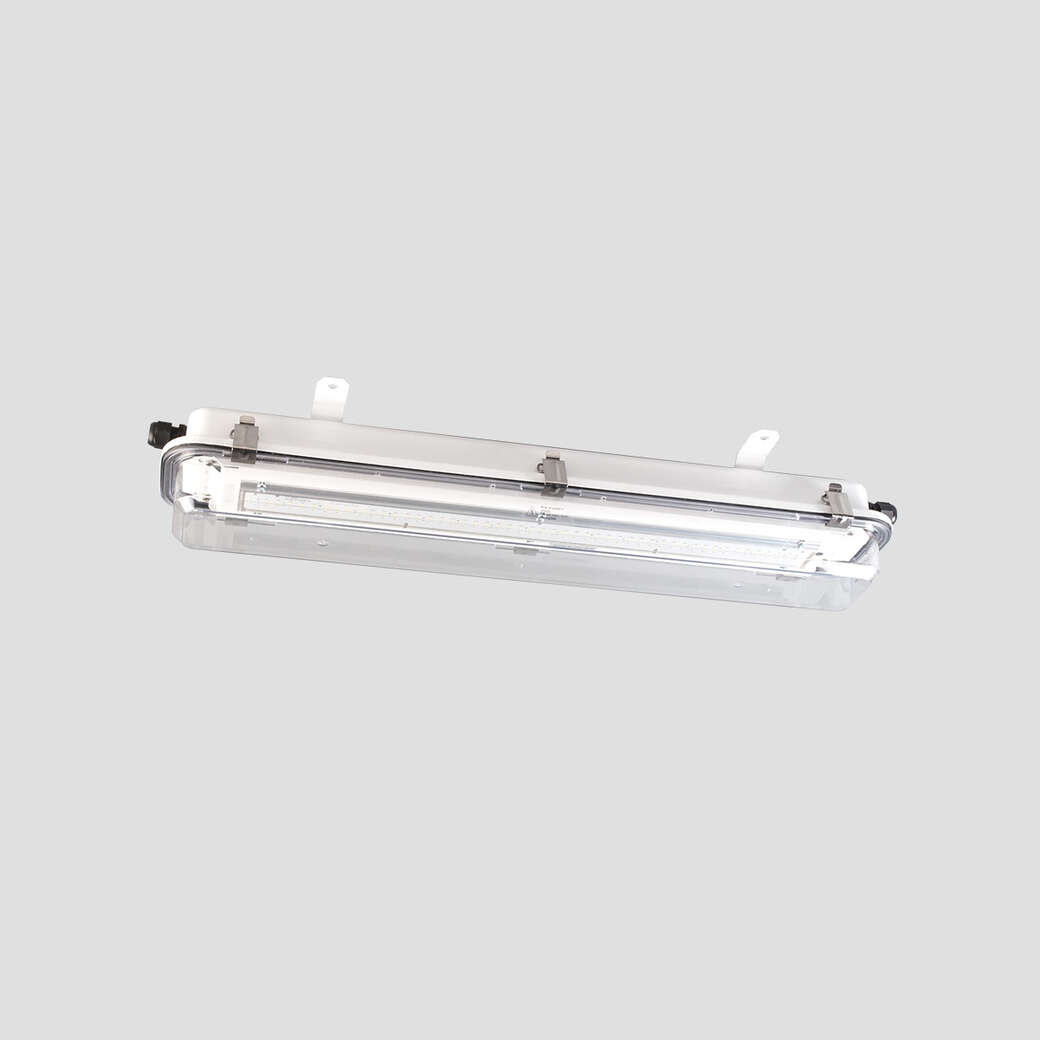

Explosion proof LED luminaire, surface mounting, for zone 1/2

DesignAccording to rules of maritime classification societies and relevant standards
Ex markingII 2G Ex eb mb op is IIC T5 Gb
II 2D Ex tb op is IIIC T55°C or T70°C Db
HousingStainless steel, powder coated white (RAL9016)
CoverClear polycarbonate
MountingLP160 brackets
Cable entry2x M20 / EEX-E
Protection classIP67
ta-40°C ... +45°C
Weight4.6 kg / 4.8 kg (BU)
Light sourceLinear LED modules
WattageMax. 22 W
CCT (color)4,000 K
Luminous flux2,100 lm
CRI≥ 80
Voltage120-240 V AC
Frequency50-60 Hz
EX40S
Family Part No.Cable glandTemperature
EX40S5108005000-0012 M20 PA-40°C...+45°C
EX40S5108005000-0042 M20 BR-40°C...+45°C
EX40S BU5108005000-0061 M20 PA+5°C...+45°C
EX40S BU5108005000-0071 M20 BR+5°C...+45°C
Spare Parts      Part no.
Clear cover7112038400

Extras

  • Different temperature ranges
  • Different light outputs
  • Through wiring (for EX40S)
  • LP GL mounting
