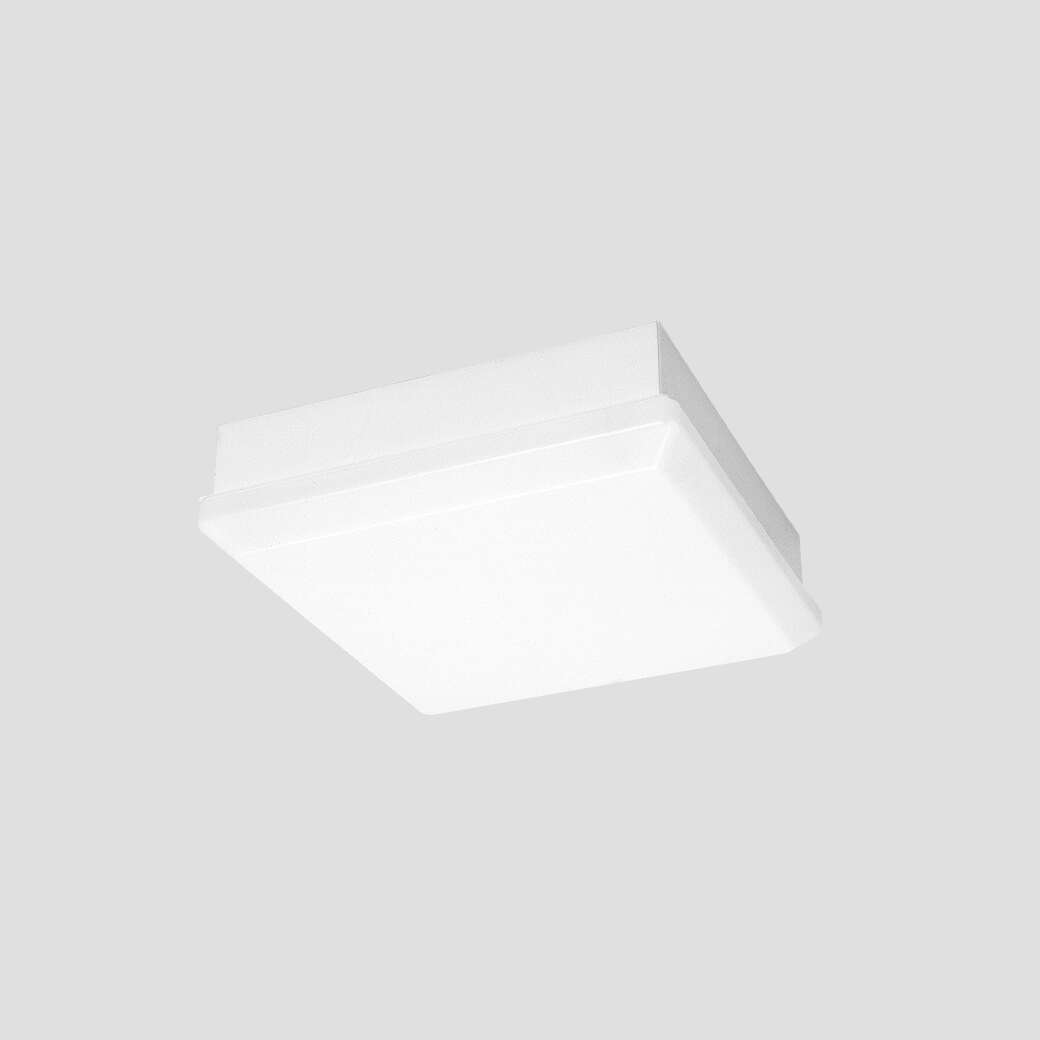

DE16XS

RECESSED MOUNTED CEILING LUMINAIRE FOR passage ways, DINING ROOMS AND ACCOMMODATION AREAS

Design	According to rules of maritime classification societies and relevant standards
Housing	Galvanized steel, powder coated white (RAL9016)
Diffuser	Opal polycarbonate, impact-proof

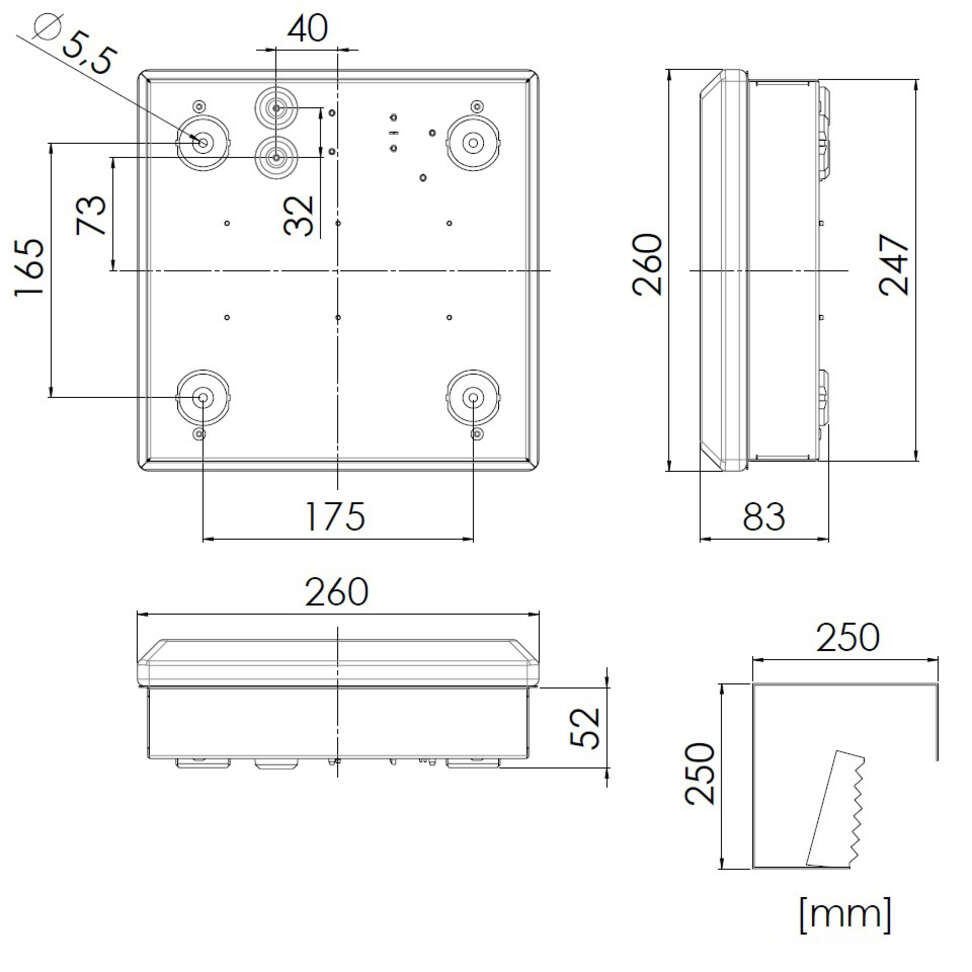

Mounting	4 mounting holes, Ø 5.5 mm
Cable entry	2 × grommets
Protection class	IP30 / IP44 in conjunction with ceiling
Weight	1.1 kg
Light source	LED
Wattage	Max. 8 W
CCT (color)	4,000 K
CRI	≥ 80
Voltage	220–240 V AC
Frequency	50–60 Hz

Part No.
DE16XS	5111011100-002

SPARE PARTS	PART NO.
Diffuser	7112004700
