DL70

Flat LED furniture light

Design	According to rules of maritime classification societies and relevant standards
Housing	Plastic
Decorative ring	White / chrome
Cover	Satin

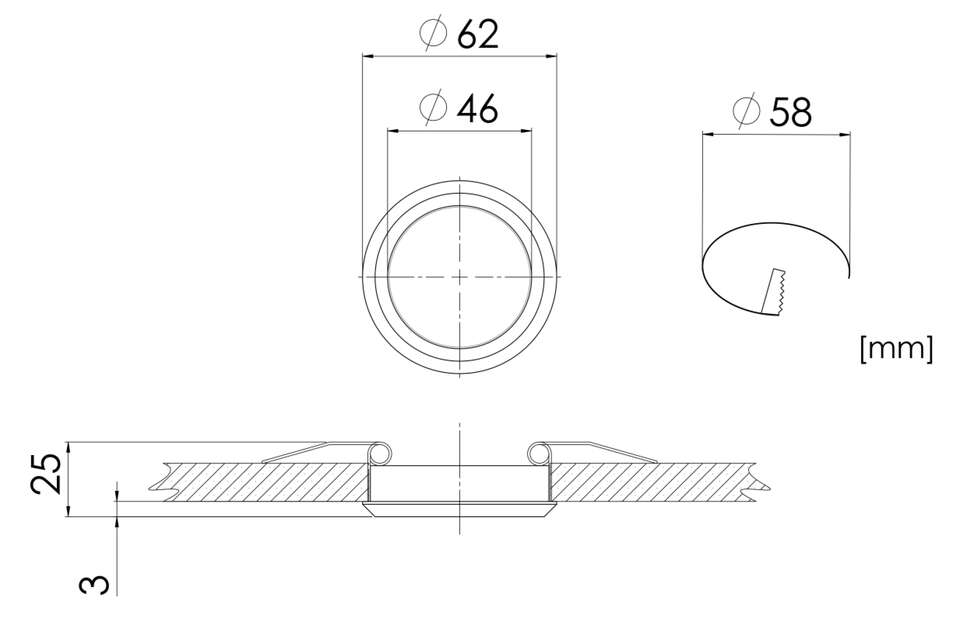

Mounting	Spring clips for ceilings max. 20 mm
Connection type	2000 mm lead with mini male plug for drilling holes Ø 8 mm
Protection class	IP20 / IP44 in conjunction with ceiling
Weight	0.12 kg
Light source	Cluster LED module, not dimmable
Wattage	Max. 2.6 W
CCT (color)	3,000 K
Luminous flux	170 lm
CRI	≥ 80
Voltage	110–220 V AC
Frequency	50–60 Hz

Part No.
DL70 white	5303003200-002
DL70 chrome	5303003200-005

Datasheet – DL70 (PDF)
