Ships that shine.
Floodlights >>> LED
ST80XL
HIGH POWER LED FLOODLIGHT FOR DECKS, HOLDS AND SEAPORTS
| Design | According to rules of maritime classification societies and relevant standards |
| Housing | Gear tray stainless steel 1.4404 (AISI 316L), powder coated RAL9016. Back side covered with opal PC hood |
| Safety pane | Tempered glass, DIN 12150, clear |
| Mounting | Stainless steel bracket, adjustable |
| Cable entry | IDC fast connection, 1x Cable Ø 9-14mm |
| Protection class | IP66/67 |
| Weight | 14 kg |
| Light source | 6x LED engine |
| Wattage | 6x 50 W |
| Equivalent | 400 W HST/HIT |
| CCT (color) | 5,000 K |
| Luminous flux | 36,000 lm |
| Voltage | 120-277 V AC |
| Frequency | 50 - 60 Hz |
| Part No. | |
|---|---|
| ST80 XL 6x 22° | 5101006600-005 |

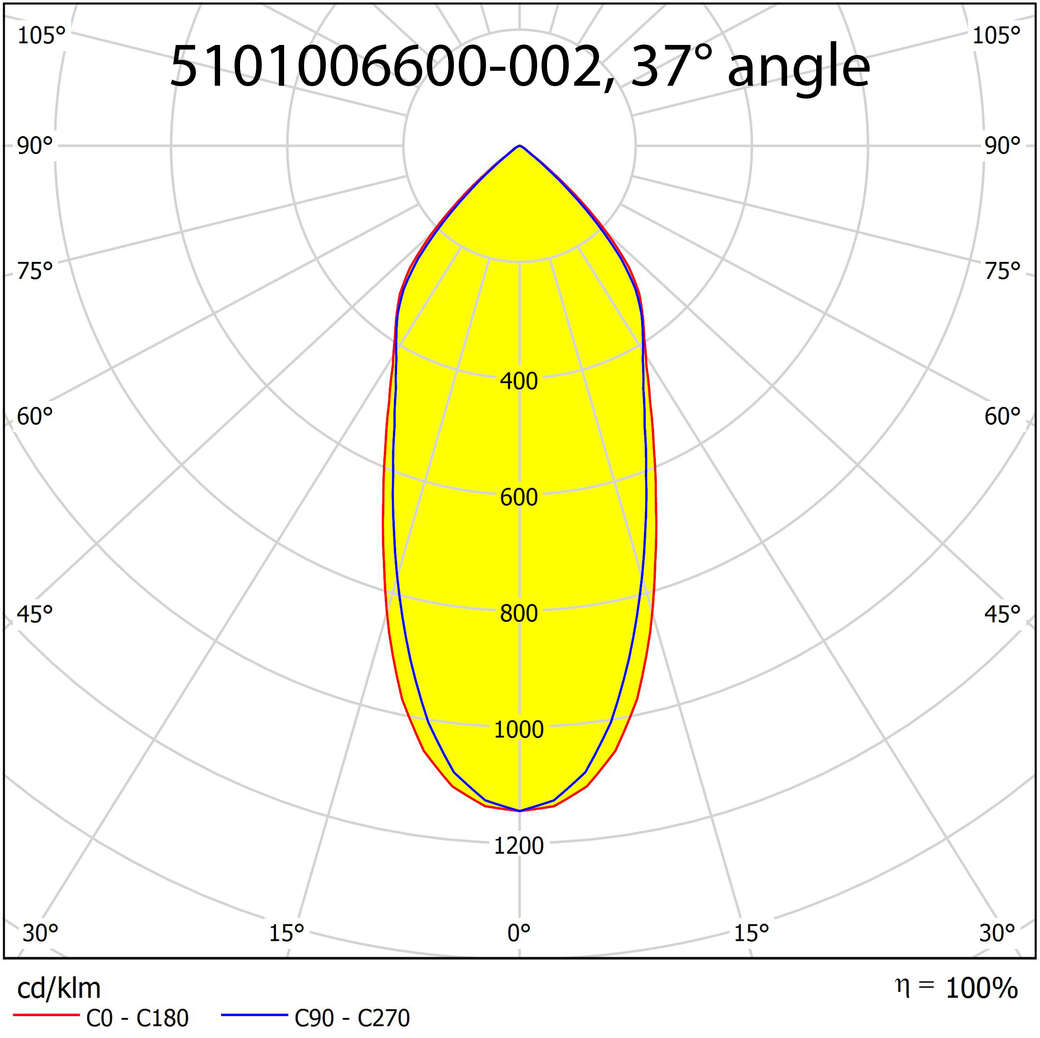

| ST80 XL 6x 37° | 5101006600-006 |
| ST80 XL 6x 52° | 5101006600-007 |
| ST80 XL 6x 91° | 5101006600-008 |
| SPARE PARTS | PART NO. |
|---|---|
| PC hood | 7502008000 |
| Bracket | 7501000100 |
| Cable entry | 7211004800 |
Extras
- Reflectors with different beam angles can be combined
- CCT also optional in 2,700-4,000 K available
- Cable entry: 2x IDC Fast connection, 2x cable Ø 9-14 mm
- Power supply: preinstalled connection cable 3G2.5, 3 meters
- Stainless steel hood
